Universal Glass Testing Machine
$75000.00$73000.00

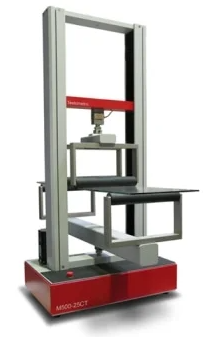

Universal Glass Testing Machine
Product Overview
The Universal Glass Testing Machine is a high-precision, versatile instrument designed specifically for testing the mechanical properties of glass panels, tempered glass, laminated glass, insulating glass units and other related materials. Using servo-electromechanical or computer-controlled drive systems, it allows you to perform tensile, compression, flexural (3-point, 4-point bending), and pull-tests under strict standards for glass. testingindonesia.co.id+2Hylec Controls+2
Key Features
Rigid, high-stability frame designed for glass testing applications — e.g., wall-type or floor-mounted construction to minimise deflection. testingindonesia.co.id+1
Suitable for glass-specific tests: 3-point bending, 4-point bending, pull/tear, constant-load glass pull tests and compressive strength tests of glass units. Hylec Controls+2testingindonesia.co.id+2
Wide load range options (e.g., up to ~20 kN or more) with high accuracy: example machine up to 20 kN capacity and displacement resolution down to 0.001 mm. testingindonesia.co.id+1
Advanced control electronics and software (PC interface) for data acquisition (load vs displacement/time), multi-curve analysis, automatic test sequence, exportable reports (Excel, PDF). Infinity Machine International Inc.+1
Configurable with a wide range of accessories: specialised fixtures for glass, modular grips, bending supports, etc., making it adaptable for other materials too (metal, plastics) as required. Hylec Controls+1
Complies with international standards for glass testing (e.g., EN 1279-4, EN 1279-6, EN 1288) ensuring your testing is compliant. besmaklab.com+1
Technical Specifications (Typical)
Maximum Load/Capacity: ~ 20 kN (or model-dependent) testingindonesia.co.id
Displacement/Load Resolution: e.g., 1/200,000 or resolution of 0.001 mm in displacement. Infinity Machine International Inc.+1
Load Accuracy: ±0.25% to ±0.5% full scale typical for such machines. Infinity Machine International Inc.+1
Stroke / Effective Testing Width: e.g., 600 mm stroke, width ~400 mm for glass bending fixture versions. Infinity Machine International Inc.+1
Speed Range: e.g., 0.001 mm/min up to several hundred mm/min for bending/tensile tests. Infinity Machine International Inc.
Control: PC/software-based, real-time graphs of load vs displacement/time, exportable reports. Chinax
Applications
Bending strength testing of tempered glass panels, laminated glass units, insulating glass units.
Compression & pull tests of glass units, including constant load tests, pull & wait tests on laths and glass panes. Hylec Controls+1
Quality control in glass manufacturing, building materials testing labs, R&D for automotive glazing or architectural glass.
Can also handle other materials with appropriate accessories (metals, plastics, composites) making it a truly “universal” testing machine for glass and allied materials.
Benefits
Ensures your glass products meet required standards and regulations (architectural, automotive, safety glazing).
High precision and repeatability minimise variability and increase confidence in test results.
Versatile machine means you can test multiple glass types and other materials — reducing need for multiple specialised machines.
Software and data export capability support traceability, reporting and compliance documentation.
Built for durability and heavy usage — robust structure, reliable electronics, lower maintenance compared to older hydraulic systems.
Why Choose This Universal Glass Testing Machine
This machine is designed for testing environments where glass-specific mechanical property data is required — whether you’re in manufacturing, R&D or quality assurance. Its combination of accuracy, flexibility, standards-compliance and software integration makes it an excellent investment for labs or production facilities that test glass and related materials.
