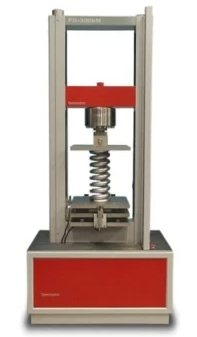

Spring Specific Universal Testing Machine
$35000.00$34780.00
Spring-Testing Universal Testing Machine
Product Overview
The Spring-Testing Universal Testing Machine is engineered for precision measurement of mechanical properties of springs — including coil springs, disc springs, leaf springs, and compression/extension configurations. Designed for both static and cyclic testing, this system integrates a high-performance UTM frame, specially designed fixtures, and advanced software for spring-specific test protocols.
Key Features
Load capacity options tailored to your spring range (e.g., 5 kN to 200 kN)
Large displacement travel for full deflection measurement of springs
Interchangeable compression plates, mandrels, and spring-specific jigs
Software modules to determine spring force vs deflection, spring constant (k), linear/non-linear characteristic curves, cyclic load sequences
High accuracy and resolution: e.g., feedback frequencies up to 1000 Hz and measurement resolution of 1/200,000 divisions
Support for static load tests, cyclic testing (fatigue), bending and torsion tests where required
User interface with real-time force/displacement graphs, automatic reporting, data export (Excel, PDF)
Robust construction for minimal machine compliance and high measurement fidelity
Typical Applications
Testing compression and extension springs in automotive suspension systems
Measuring stiffness and travel of mechanical springs used in machinery and tools
Quality control of disc springs and leaf springs in manufacturing and R&D
Cyclic fatigue testing of springs subject to repeated loading/unloading cycles
Material craftsmanship labs, engineering test houses, component durability labs
Benefits
Sensitive enough for small springs, yet powerful enough for heavy-duty applications
Designed to give accurate spring constant and deflection data for performance verification
Flexible and modular — easily reconfigured for different spring types and sizes
Integrated software simplifies data analysis and reporting, reducing manual effort
Built for durability and precise repeatability, ensuring long-term value
Why Choose This Machine?
This machine bridges the gap between general-purpose UTMs and highly specialized spring testers — offering the versatility of a universal frame but optimised for spring testing. Whether you’re verifying spring stiffness in production or performing fatigue tests in a test lab, this system gives you the control, accuracy and data you need.
