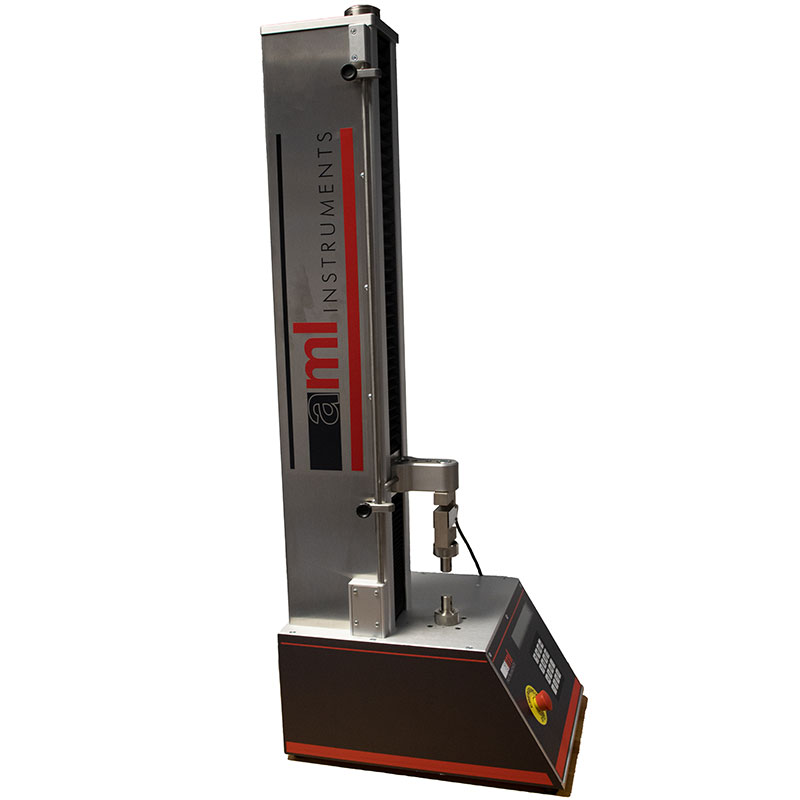

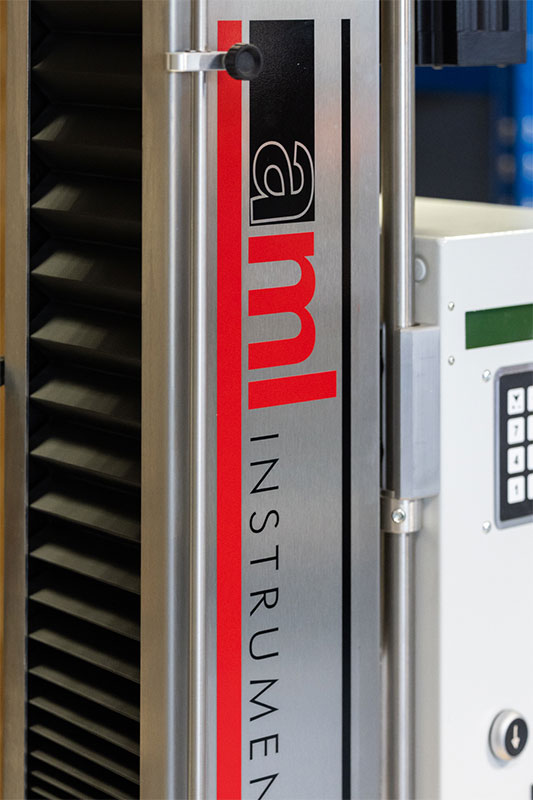

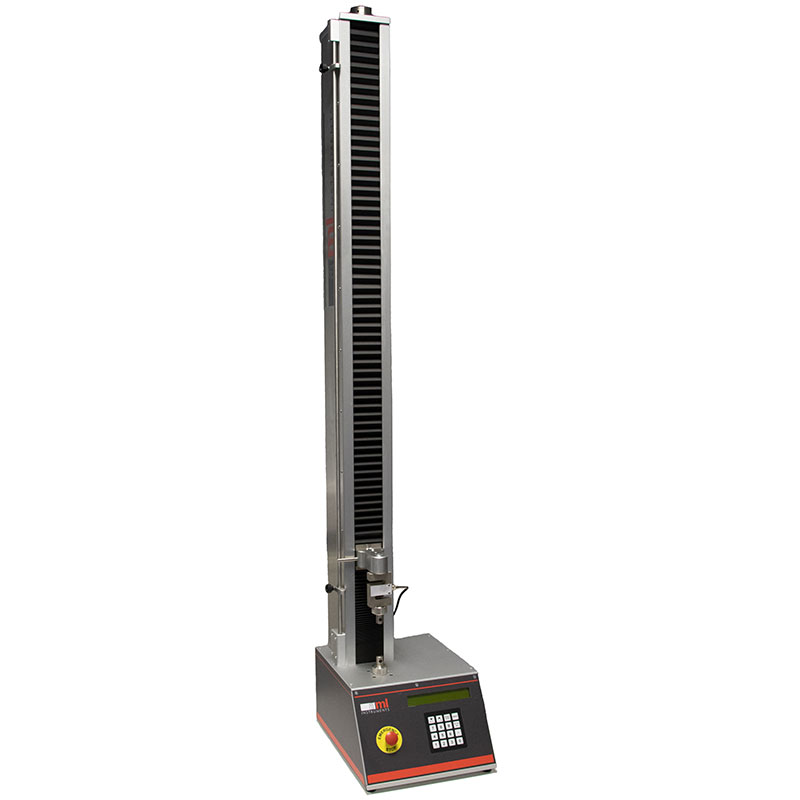

Single Column Tensile Tester / Universal Testing Machine
$22000.00$21800.00
Single Column Tensile Tester / Universal Testing Machine
Product Overview
The Single Column Tensile Tester, also known as a Universal Testing Machine (UTM), is a compact and high-precision instrument designed for testing the tensile, compression, bending, and shear properties of various materials. It is ideal for low-to-medium load applications and provides reliable performance for quality control, research, and production testing environments.
Key Features
Compact single-column frame design — perfect for laboratories and small workspaces
Testing capacity: typically from 1 kN to 5 kN (optional models up to 10 kN)
Servo motor drive system ensures smooth, precise load control
High-accuracy load cell with force measurement accuracy up to ±0.5 %
Wide speed range: 0.001 mm/min to 1000 mm/min
Displacement resolution: up to 0.3 µm for precise elongation measurement
User-friendly software interface for data acquisition, analysis, and reporting
Supports tensile, compression, flexural, peel, and shear testing modes
USB/RS-232 data output and customizable reporting templates
Conforms to international standards: ISO, ASTM, BS, and EN
Technical Specifications (Typical Model)
Maximum Load: 1 kN / 2 kN / 5 kN
Force Accuracy: ±0.5 % of reading
Crosshead Speed: 0.001 – 1000 mm/min
Crosshead Travel: Up to 850 mm (optional extended version available)
Displacement Resolution: 0.3 µm
Frame Type: Single column with high-rigidity structure
Control System: PC-based with servo motor and drive controller
Power Supply: 220 V ± 10 %, 50 Hz
Applications
The Single Column Tensile Tester is suitable for testing a wide range of materials, including:
Plastics and polymers
Rubber and elastomers
Textiles and fabrics
Paper, packaging films, and foils
Adhesives and composites
Metals and wires (low-load samples)
Benefits
High precision and repeatability for dependable test results
Compact design saves space while maintaining strength and rigidity
Easy operation through intuitive software interface
Fast setup with interchangeable grips and fixtures
Ideal for both educational and industrial use
Why Choose Our Single Column UTM
Combining cutting-edge drive technology with intelligent control software, this machine delivers exceptional accuracy and flexibility for a wide range of mechanical testing applications. Whether in research, education, or production quality control, the Single Column Tensile Tester offers reliability, performance, and ease of use at an outstanding value.
