Multi-Check 100G Tablet Testing Machine

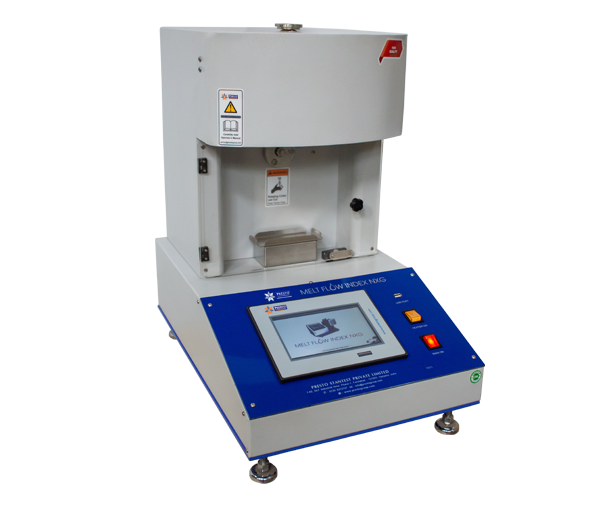

Melt flow is simply considered to be the measure at which the materials will be melted. Thus, testing the melt flow properties of the materials is very important to make sure that the right quality product will be delivered to the customers with ease. Thus, we at Presto have come up with one of the high-quality lab testing instruments known as melt flow index tester NEO 2.0. This testing instrument has been made with the latest technology and advanced temperature settings and preset timer functions to make it easy for you to conduct the melt flow test on the materials with ease.

The product designing experts at Presto have designed this lab testing instrument with all industrial standards that include: ASTM D 1238-1992, IS 2267-1972, IS 2530-1963, and IS 10810-1984. This will make it easy for the manufacturers to conduct a melt flow test on the materials with ease. This advanced lab testing equipment will help to extrude the molten resins through a jet of a specific length and diameter under prescribed conditions of temperature, load, and piston position. Besides this, its powder-coated Havel gray finish and bright chrome zinc plating will make it easy for the manufacturers to conduct a melt flow test on the materials. You can read more about the features and technical specifications of this lab testing equipment.

• Display: HMI Based touchscreen 7"

• Temperature Range: Ambient to 400º C

• Accuracy: ± 1ºC

• Least Count/Resolution: 0.1ºC

• Power: 220V, Single phase, 50 Hz

• Sample Cutting:  Automatic Motorized

• Temperature Control: Inbuilt PID Temperature Controller

• Timer: Inbuilt in HMI Preset Timer up to 999 sec

• Inner Diameter of heating barrel(cylinder): 9.550mm ± 0.007mm

• Inner Diameter of Die: 2.095mm ± 0.005mm

• Diameter of piston head: 9.474mm ± 0.007

• Material of Heating Barrel(Cylinder): Die Steel

• Sample Cutting Motor: 2 Torque 7Kg/cm, 60RPM

• Sample Cutting Motor: 2 Torque 7Kg/cm, 60RPM

• Load Cell Range: 800 gm, Least count 0.01 gm

Highlights:

• Test Report: Yes, in PDF format

• No. of Dead Weights:  4 (1.2kg, 2.16kg, 3.8kg, 5kg)

• Material: Mild Steel

• Finish: Powder coated Havel Gray & Blue combination finish and bright chrome/zinc plating for a corrosion-resistant finish

• Dimensions: 400 x 580 x 630 mmFeatures of MFI TESTER NEO 2.0

  The latest model of Presto melt flow index tester i.e. MFI tester NEO 2.0 has been equipped with an advanced set of features that will make it easy for the manufacturers to conduct the melt flow test. With its highly corrosion-resistant body, you will be able to use this lab testing instrument for a longer time. Below we have listed the features of this lab testing equipment.

  • HMI-based Touchscreen Model

  • Result of MFI for individual test & average of all tests.

  • Microprocessor-based inbuilt PID controller

  • Automatic sample cutting

  • Temperature setting and Preset Timer functions incorporated in HMI for accuracy and repeatability

  • Die Steel barrel for uniform and the consistent heating of barrel/test cylinder.

  • Test report can be generated in PDF format.

  • Program profile for selecting test parameters and performing the test.

  • Easy Data Management. Users can create product identification, test temperature, time, etc.

  • USB option available for storing test data (Pen drive not a part of an offer)

  • Data output in PDF and CSV file format.

  • Can be programmed Pre-Heating Time.

  • Calculate the Direct MFI value with High precision Load cell interface

  • Calculate the Test results, Min. /Max. /Avg.

Introducing the Multi-Check 100G Tablet Testing Machine—a state-of-the-art solution for pharmaceutical tablet quality control. Engineered for precision, this fully automated device accurately measures the hardness, thickness, diameter, and weight of tablets, streamlining your testing process and improving production efficiency. The intuitive touch screen interface and durable, stainless steel construction ensure long-lasting performance in any laboratory setting. Its compact footprint allows for easy integration on benchtops, while customizable tablet trays accommodate a variety of tablet sizes and shapes. Available in a sleek silver finish, the Multi-Check 100G empowers manufacturers to maintain the highest standards of quality and consistency with ease.
