Barrus RED Single Column Universal Testing Machine
$20000.00$19650.00

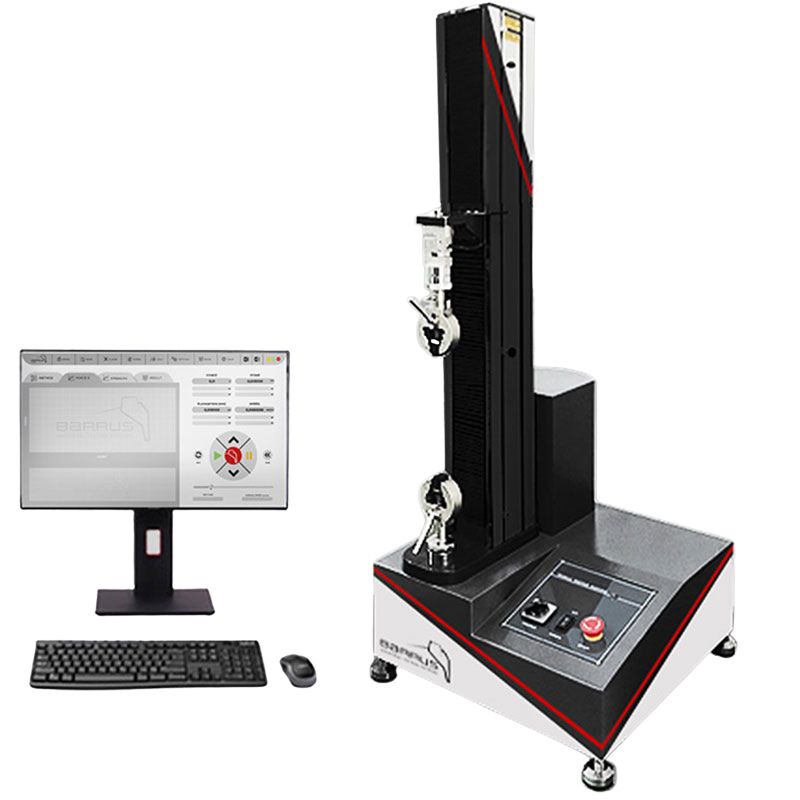

Barrus RED Single-Column Universal Testing Machine
Product Overview
The Barrus RED Single-Column Universal Testing Machine sets a new standard in precision material testing. Optimised for low-to-mid force applications (up to ~5 kN), this machine combines servo-motor drive technology, high-resolution measurement systems and an intuitive software interface to deliver reliable, repeatable results across a broad range of material testing scenarios. AML Instruments+2Barrus+2
Key Features
Available frame capacities: 1 kN, 2 kN and 5 kN (single-column configuration) – ideal for smaller load applications. AML Instruments
Force measurement accuracy up to ±0.5% of applied force and force resolution of 1/250 000. Barrus+1
Displacement (crosshead/position) measurement resolution down to 0.3 µm. AML Instruments+1
Speed range: 0.001 mm/min to 1000 mm/min (standard) for versatile test speeds. AML Instruments+1

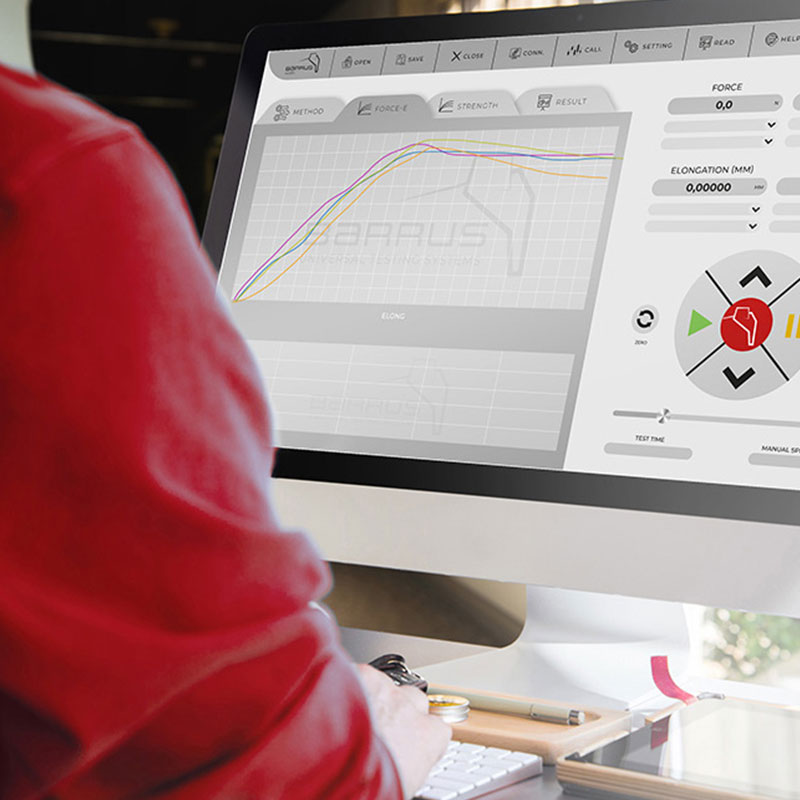

Full-featured “Ivory” software included—pre-loaded with standards (EN, ISO, ASTM), test templates and report functions. Barrus+1
Modular accessories: extensometers (clip-on, long-travel, video), grips & fixtures – the machine can adapt from rubber to metal to composites. AML Instruments+1
Safety and control features: hardware end-stops, software force/extension limiters, optional plexiglass guarding. AML Instruments
Applications
Tensile testing of plastics, elastomers, wires, films and small metallic components.
Compression, flexure (bending) and peel/tear tests where a smaller footprint single-column machine is appropriate. AML Instruments
Quality control labs, production environments and research facilities where accuracy and repeatability are required.
Technical Specifications (Example)
Capacity: 1 kN / 2 kN / 5 kN (single-column) AML Instruments
Accuracy: ±0.5% of applied force AML Instruments+1
Displacement resolution: 0.3 µm AML Instruments
Force resolution: 1/250,000 Barrus+1
Speed range: 0.001 to 1000 mm/min AML Instruments
Working space (without grips): ~850 mm height (optional extra height up to ~1 500 mm) AML Instruments
Size: approx. 58 × 58 × 125 cm (for standard frame) AML Instruments
Benefits
High precision at a competitive cost: Delivers advanced measurement capabilities typically seen in larger machines but optimised for smaller force ranges.
Flexible and future-proof: Easily adapts via accessories and software to evolving test standards or new materials.
Certified and compliant: Ready for EN, ISO, ASTM standard testing with supplied templates and built-in software.
Streamlined operation: The one-button start, intuitive interface and full control via PC reduce operator training and variation.
Compact footprint: The single-column format allows installation in smaller laboratories or production areas.
Why Choose Barrus RED?
Barrus RED is a high-end solution designed to deliver exceptional value: precision build, advanced features and rich accessory support—all while maintaining manageable cost and ease of use. Whether you’re testing polymers today and metals tomorrow, this machine gives you the flexibility and capability to meet demanding testing regimes now and in the future.
