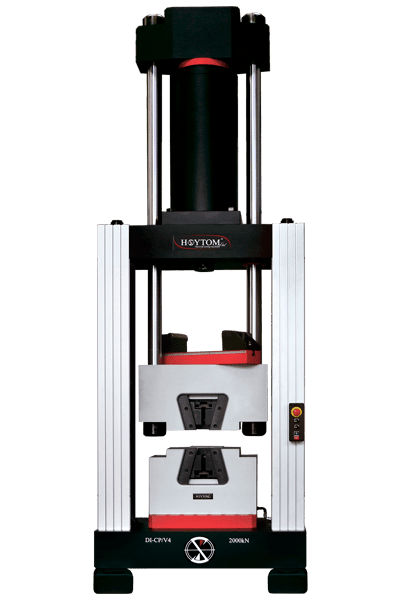

400 to 2000kN Servo Hydraulic Universal Testing Machines DI-CP-V4 HOYTOM® PRO Series

Servo Hydraulic Universal  Testing  Machines DI-CP-V4 HOYTOM® PRO Series

The DI-CP-V4 is part of the Hoytom Pro Series of Servo Hydraulic Universal Testing Machines from Hoytom in Spain.

In a range of capacities from 400 to 2000kN.

Dual testing area, tensile in the lower area and comes equipped with hydraulic wedge grips. The upper area is used for bend and compresive tests.

Hoytom HoyWin® powerful yet initiative software & PC supplied with every machine.

These servo hydraulic testing machines are highly capable of performing tests on any material regardless of how hard or tough it might be.

• Tensile – Compression – Bending – Shear… tests



• HBM® loadcell (World leader in load cells)

• Servo-hydraulic Close Loop Control

• 3 year warranty

• Manufactured in Spain by Hoytom

• Force capacity :  400 to 2000 kN capacity models

• Loadcell Accuracy : +/- 0,5 % (EN ISO 7500 Class 0.5 ASTM E4)

• Loadcell range 0.4% – 100%

Servo Hydraulic Universal  Testing  Machines, standard delivery includes :

• Load Cell Tension/Compression of (400 – 600 – 1000 – 1500 – 2000 kN according model)



• HYDRAULIC Tensile Grips & 1 set of jaws

• ENAC Calibration Certificate (equivalent to UKAS)

• PC with Hoytom HoyWin® software pre-installed.

• Installation, training & support by AML Instruments’s UK based engineers.

Optional extras

• Extensometers from Epsilon & MF

• Grips, jaws and fixtures for just about any test to any National or International standard

• Safety guards with interlock.
